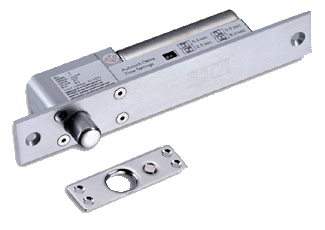

Dead Bolt Lock

Dimensions :

                        FACE PLATE : 200mm(L) x 32mm(W) x 40mm(D)

                        STRIKE PLATE : 90mm(L) x 26mm(W) x 2mm(D)

                        BOLT : 16mm(Throw) x 15.5cm(Diameter)

Features :

                       1. Power Supply: DC 12V.

                       2. Fail-safe type (Power to lock).

                       3. Built-in delayed egress control point.

Specifications :

                        Fail- safe type (Power to lock)

                        Operation delay time : 0 sec., 2.5sec., 5sec., 9sec.

                        Operation current : 900mA, Holding current: 330mA

                        Door sensor (SL-100A:N.C. & N .0. / SL-100B:N.C.)

                        Built-in delayed egress control point

                        Power Supply : DC 12V

                        Weight : 860g
